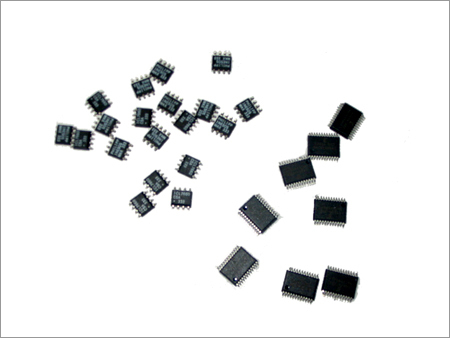

SMD IC's

Get a Price/Quote

SMD IC's Specification

Sensors Specification
N/A (unless sensor IC)

Interface
SMT (Surface Mount Technology) Solder Pads

Processor Speed
N/A (specifies if microcontroller)

Output
Digital/Analog Signal

Power Source
DC Power Supply

Features
Miniature package, high reliability, suitable for high-density PCB, RoHS compliant

Operating Temperature
-40C to +85C

Input
Digital/Analog Signal

Thermal Conductivity
Standard SMD package dissipation

Response Time
Few nanoseconds to microseconds (varies by type)

Components
Silicon Die, Leadframe, Mold Compound

Resolution
N/A (unless ADC/DAC specified)

Power Supply
DC

Usage
General Electronic Applications, Signal Amplification, Logic Circuits

Product Type
Surface Mount Device Integrated Circuit (SMD IC)

Application
Consumer Electronics, Communication, Industrial Automation, Computer Systems

Rated Voltage
3V to 5.5V

Supply Voltage
3V to 5.5V

Size
SOP/TSSOP/QFP/DFN/SOT packages (varied)

Dimension (L*W*H)
5.0mm x 6.0mm x 1.0mm (example SOP-8)

Function
Integrated Circuit for electronic control and signal processing in SMD format

Color
Black

Weight
Approx. 0.02g to 0.1g (varies by package)

Current Rating
Up to 30mA/channel (varies by IC type)

Capacity
N/A (depends on function; refer to IC datasheet)

Thickness
0.7mm to 1.2mm (varies by package type)

Frequency
Up to several MHz (varies by IC specification)

Moisture Sensitivity Level
Level 1 to 3 (per MSL standards)

Lead Finish
Tin (Sn) or Lead-Free

RoHS Compliance
Yes

Package Types
SOP, QFP, TQFP, TSOP, SOT, DFN, QFN, MSOP

Mounting Type
Surface Mount

Environmental Standard
Halogen Free (optional as per manufacturer)

Manufacturing Standard
JEDEC/IPC SMD guidelines

Pin Count
Varies (typically 8 to 64)

Shelf Life
12 months (recommended)

Marking Code
Laser or ink marking on top

Replacement Policy
As per distributor terms

Anti Static Protection
ESD Safe packaging

About SMD IC's

Cosmic Devices is well-known Supplier and trader of premium quality SMD IC's. These are a small electronic device made out of a semiconductor material. The integrated circuits offered by us are extensively used in all the electronic devices and equipment.

Features:

Long service life
Power efficient
Compact construction
Wide usability

Versatile Surface Mount Packages

Choose from multiple SMD IC package typesincluding SOP, QFP, TQFP, TSOP, SOT, DFN, QFN, and MSOPenabling high-density PCB designs. This versatility makes the ICs suited for compact electronic devices and various applications spanning consumer electronics to industrial automation.

RoHS Compliance and Lead-Free Construction

All SMD ICs meet strict RoHS environmental requirements, featuring tin (Sn) or lead-free finishes. Optional halogen-free standards may be offered per manufacturer specifications, ensuring environmentally safe and sustainable device integration.

Reliable Performance and Quality Assurance

Manufactured per JEDEC/IPC SMD guidelines, these ICs undergo rigorous quality processes, including ESD protection and moisture sensitivity level (MSL) control. Laser or ink markings clearly identify components, reinforcing product authenticity and traceability.

FAQs of SMD ICs:

Q: How are SMD ICs installed on electronic circuit boards?

A: SMD ICs are designed for surface mounting using SMT (Surface Mount Technology) solder pads, which allows them to be directly soldered onto the surface of printed circuit boards for compact and efficient layouts.

Q: What are the advantages of selecting RoHS-compliant and lead-free SMD ICs?

A: RoHS-compliant and lead-free SMD ICs limit hazardous substances, contributing to safer electronics manufacturing and easier global compliance, thus benefiting both environmental health and workplace safety.

Q: When should I consider moisture sensitivity level and ESD packaging for SMD ICs?

A: Moisture sensitivity levels (MSL 13) should be considered during storage and assembly, as ICs may absorb moisture that impacts quality during soldering. ESD-safe packaging is essential to prevent static damage during handling and transport.

Q: Where are these SMD ICs typically used?

A: These SMD ICs are commonly found in consumer electronics, communication equipment, industrial automation systems, and computer devices for functions like logic control, signal amplification, and digital or analog interfacing.

Q: What is the recommended process for storing SMD ICs before use?

A: Store SMD ICs in cool, dry environments within ESD-safe packaging, adhering to their recommended 12-month shelf life to maintain optimal performance and prevent moisture-related issues before PCB assembly.

Q: How does the marking code help with SMD IC identification?

A: Laser or ink markings on the top of each SMD IC provide unique codes that facilitate easy identification, traceability, and verification during the assembly and maintenance processes.

Q: What benefits do these SMD ICs offer for high-density PCB designs?

A: Their miniature package sizes, surface mount compatibility, and varied pin counts enable optimized space usage, supporting complex, high-density PCB layouts for advanced electronic products.
